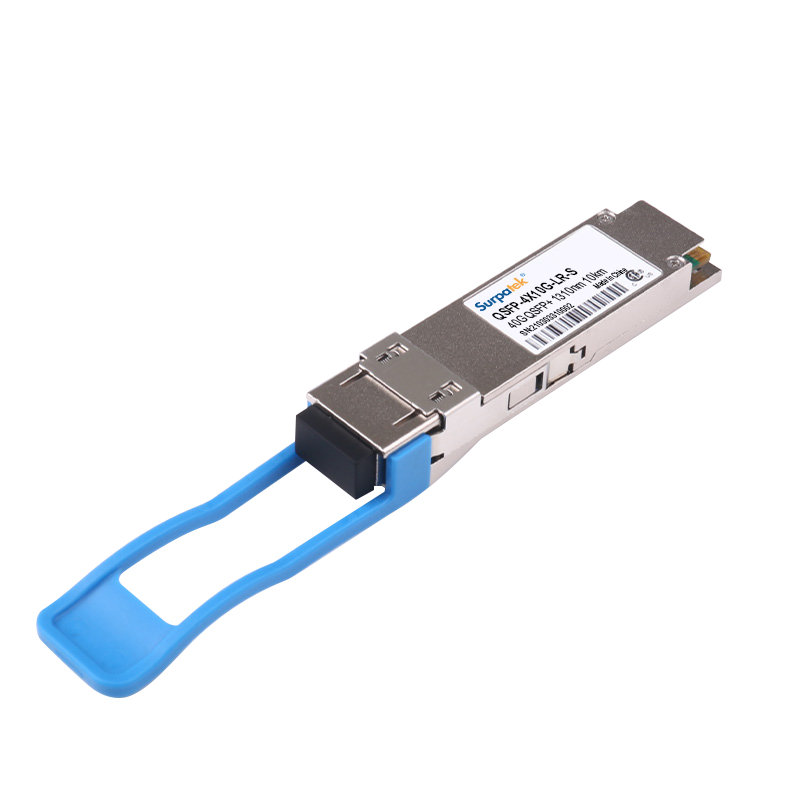

Cisco QSFP-4X10G-LR-S Compatible 4x10GBASE-LR QSFP+ Optical Transceiver Module for Ethernet and Data Center (SMF, 1310nm, 10km, MTP/MPO-12, DOM)
Product Specification:
| Cisco Compatible | QSFP-4X10G-LR-S | Vendor Name | SURPATEK |
| Form Factor | QSFP+ | Max Data Rate | 44.4Gbps (4×11.1Gbps) |
| Wavelength | 1310nm | Max Cable Distance | 10km |
| Connector | MTP/MPO-12 Male | Cable Type | SMF |
| Transimitter Type | 4x DFB | Receiver Type | PIN |
| DDM/DOM | Supported | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| TX Power | -6~-1dBm | Receiver Sensitivity | <-14.4dBm |
| Powerbudget | 8.4dB | Receiver Overload | 0.5dBm |
| Power Consumption | <2.5W | Extinction Ratio | >4.5dB |
| Transmit and Dispersion Penalty | 2.6dB | Modulation Format | NRZ |
| Packaging Technology | BOX Packaging | Host FEC | Supported |
| Bit Error Ratio (BER) | 1E-12 | Protocols | 40G Ethernet, MSA Compliant |
| Application | 10GBASE-LR/LW 10G Ethernet, OTU2, OTU1e, OTU2e, Data Center | Warranty | 5 Years |
