PON Fiber Optic Power Meter Wavelengths 1310/1490/1550nm PON Optical Power Meter With VFL OLT Tester

*OEM & ODM Accepted

Description

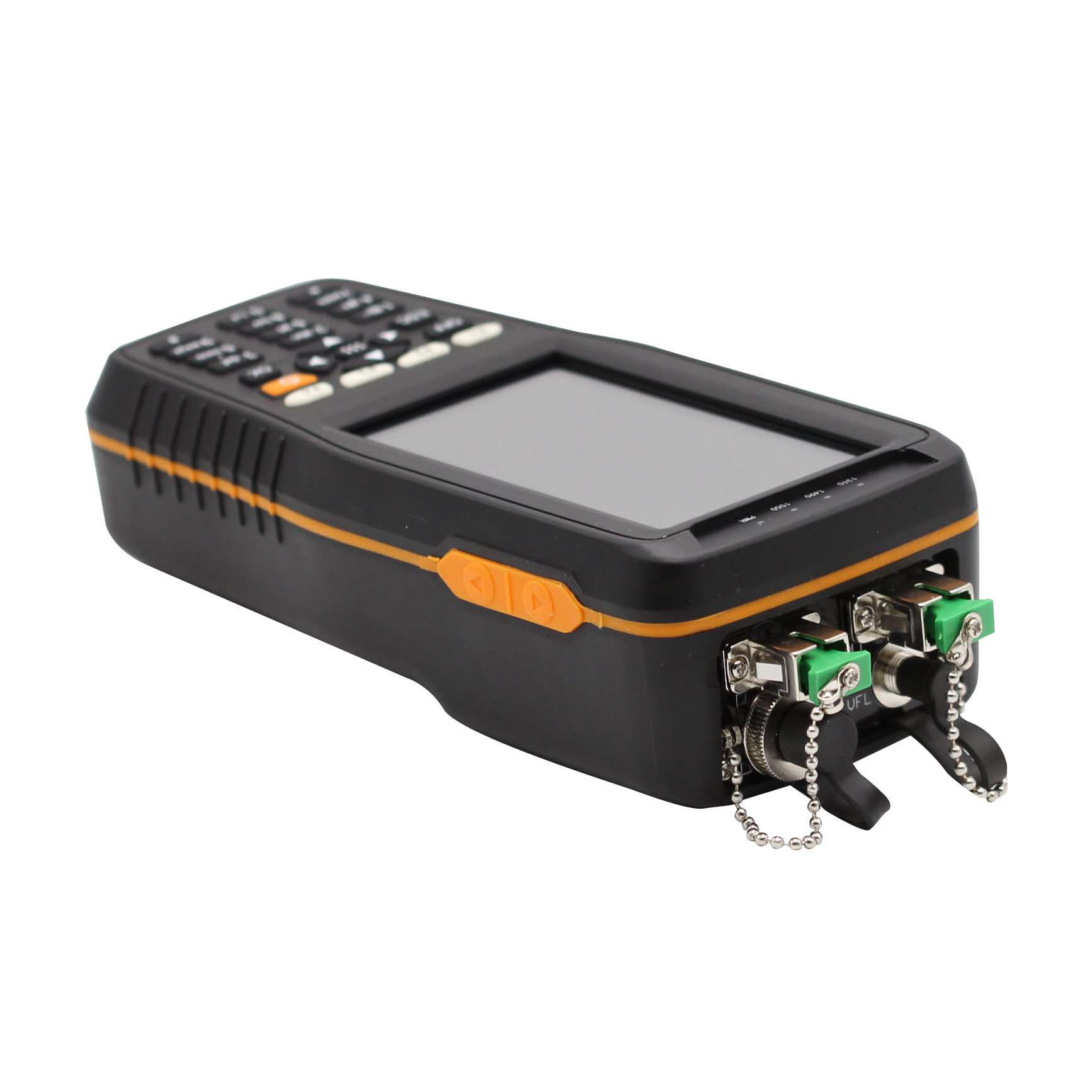

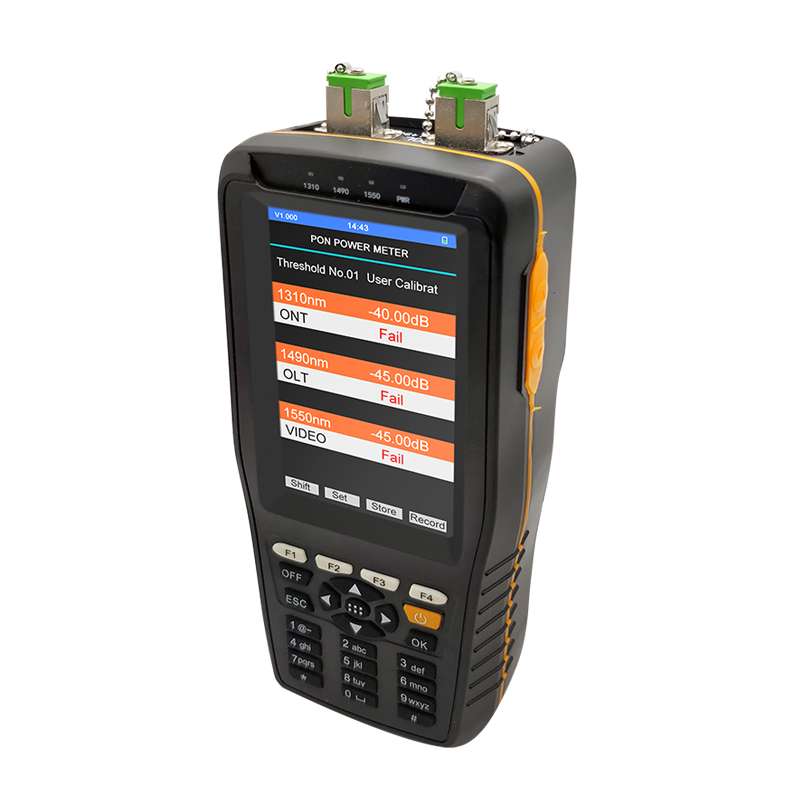

BPM70B PON Power Meter (pon test instrument) is specially designed for PON network construction and maintenance which can be connected between OLT and ONT. The voice, data, video signal (1310/1490/1550) online can be measured synchronously and optical power value (1310/1490/1550) can be displayed with this meter. It’s a useful site test tool for the engineers of PON network and maintenance operators.

Features

1.Handheld, easy to operate

2.Can test 3 wavelengths’ power of PON system synchronously: 1310nm, 1490nm, 1550nm,

3.Can test the burst mode signal of 1310nm

4.True color screen

5.Friendly operation interface, human message management and operation function
6.Supply 10 groups of threshold values for operator’s choice, analyze and display pass and fail status

7.Relative value choice and edit function

8.Can save 1000 records and upload the records through USB to management software

9.Can set the threshold value, upload data, and calibrate wavelength through management software

10.Auto shut off (according to set value)

11.Auto backlight off(according to set value)

12.6600mAh Lithium battery

13.Power saving design (Low voltage self check and power off)

14.Real-time clock display

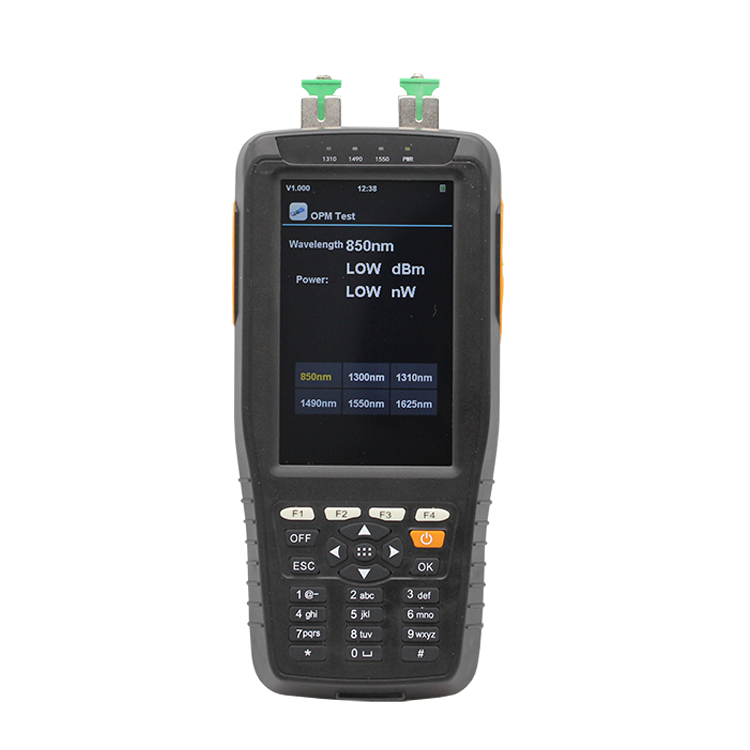

15.Optical Power Meter （ Optional Function)

16.Visual Fault Locator ( Optional Function)

Order Option

BPM70B	Only PON Power Meter
BPM70B-OV1	PON+1MW VFL+optical power meter（850,1300,1310,1490,1550,1625nm）

Specifications

PON Power Meter
Standard wavelengths	1310(upstream)	1490(downstream)	1550(downstream)
Pass zone(nm)	1260~1360	1470~1505	1535~1570
Range(dBm)	-50~+10	-50~+10	-45~+23
Isolation @1310nm(dB)		>40	>40
Isolation @1490nm(dB)	>40		>40
Isolation @1550nm(dB)	>40	>40
Accuracy
Uncertainty(dB)	±0.5
Polarization Dependent Loss (dB)	<±0.25
Linearity(dB)	±0.1
Through Insertion Loss(dB)	<1.5
Resolution	0.01dB
Unit	dBm/xW
LCD	480*800, True color touch screen
Battery	7.4V 2200mAH rechargeable Lithium battery
Working temperature	-10~60°C
Storage Temperature	-25~70°C
Dimensions(mm)	1858050
Weight(g)	about 370g
