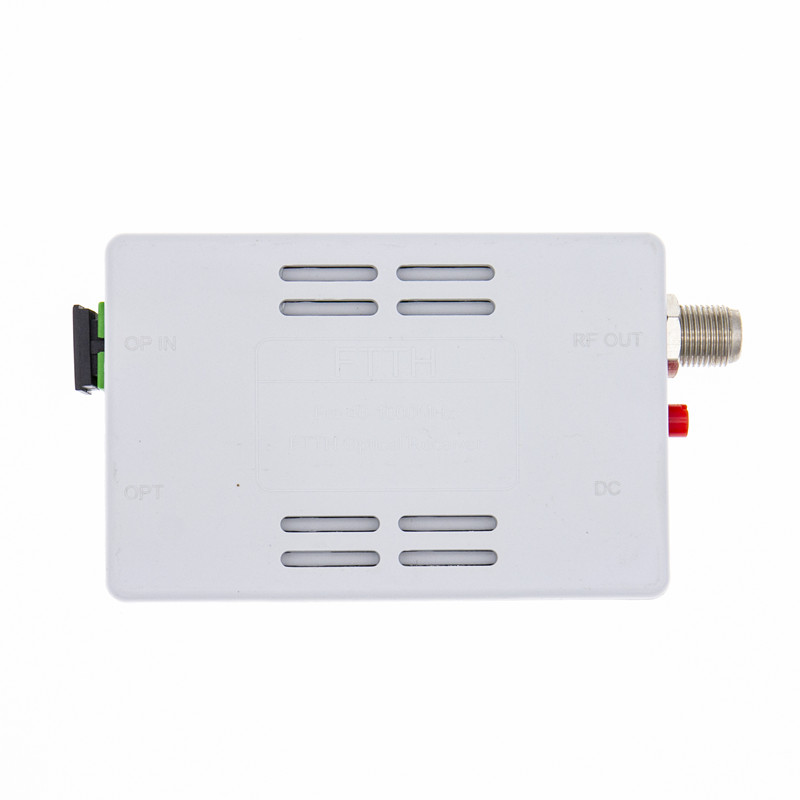

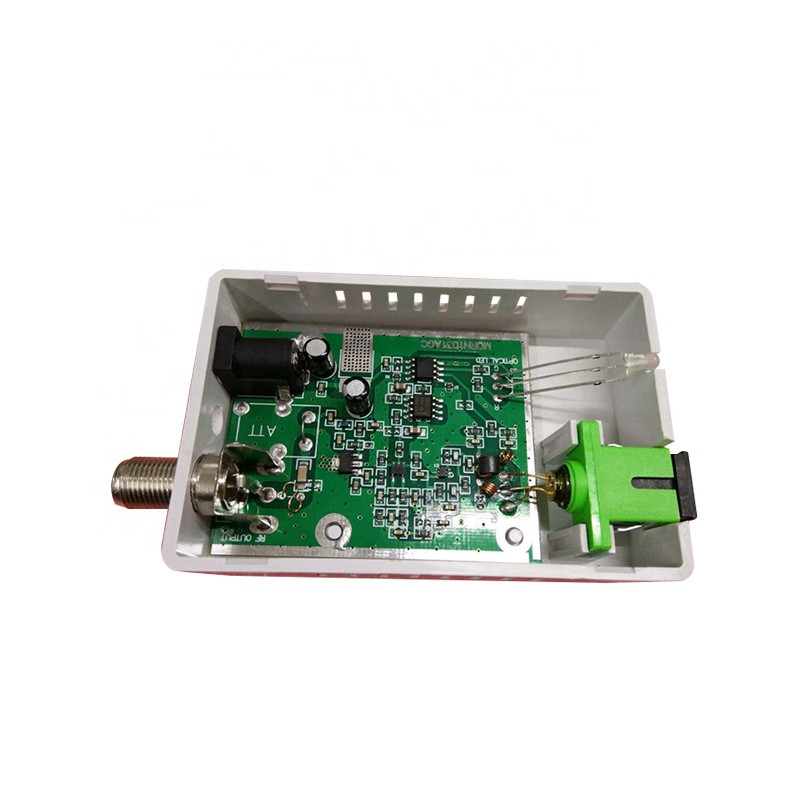

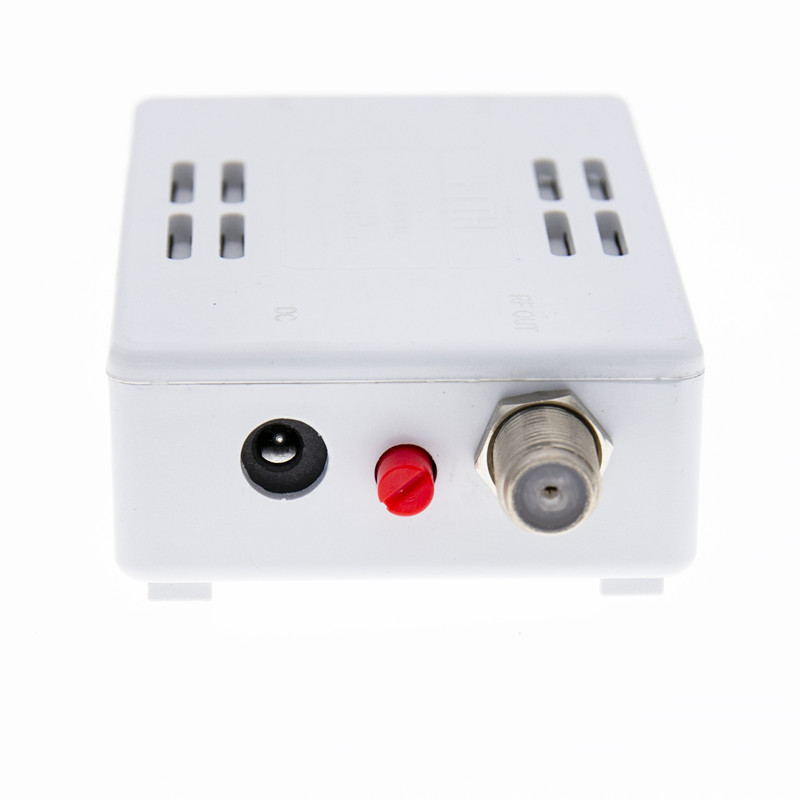

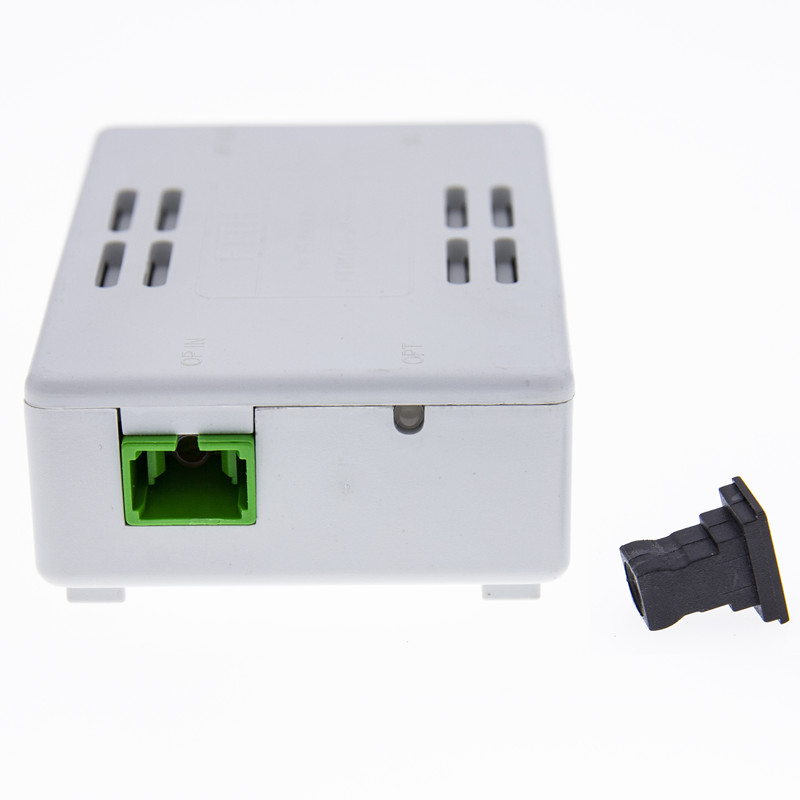

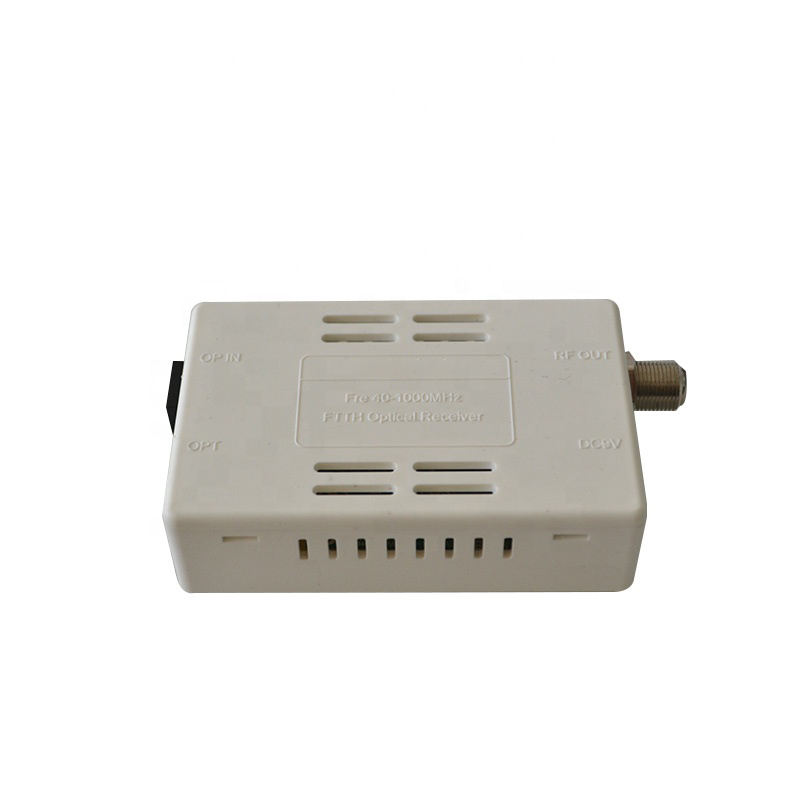

Optical Receiver CATV FTTH Node Daul fiber with AGC Function YT -1200M-S

Certification:ISO9001
output:60~85dBμV(±1 dBμV),can also customize for customers

Adjustable attenuation:-10dB or 20dB optional

our bandwidth:45~1200MHz

Light receiving wavelength:1100~1600nm

Optical fiber connector:FC/APC SC/APC etc. optional

(C/N):≥50db

(C/CTB):≥65db

(C/CSO):≥63db

color:white

Application:For GEPON Network

Power Input:-15dBm-+2dBm

CATV optical receiver plastic shell

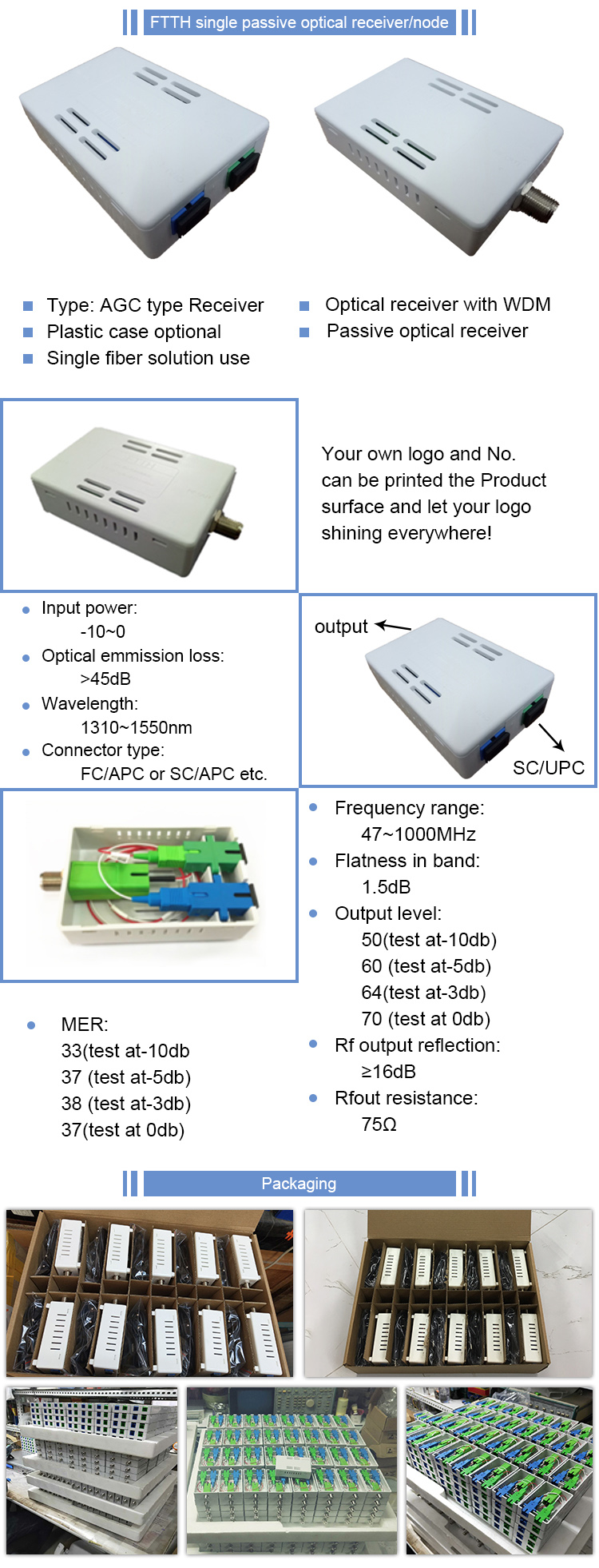

Hot sell node 1550nm catv ftth output wdm micro optical receiver

Performance	unit	Index
		FTTH
Optical properties
Receiving optical power	dBm	-15~+2
Optical reflection loss	dB	>45
Light receiving wavelength	nm	1100~1600
Optical fiber connector		FC/APC SC/APC etc. optional
Link characteristic
(C/N)	dB	≥50
(C/CTB)	dB	≥65
(C/CSO)	dB	≥63
RF characteristic
Frequency range	MHz	45~1200
In-band flatness	dB	±0.5(45-550MHz);±0.75(550-750/862/1000MHz)
Output level	dBμV	60~85(±1 dBμV)
